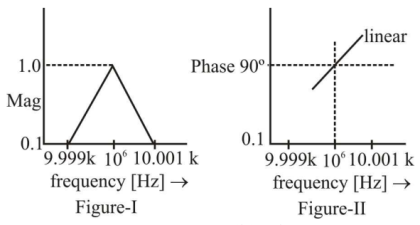

A carrier of frequency 1 MHz is amplitude modulated by a signal of frequency 1 kHz to a depth of 60%. This is passed through a filter of characteristics shown in the given Figure-I and Figure-II. If the filter output is fed to an envelope detector, the detector output will be
A carrier of frequency 1 MHz is amplitude modulated by a signal of frequency 1 kHz to a depth of 60%. This is passed through a filter of characteristics shown in the given Figure-I and Figure-II. If the filter output is fed to an envelope detector, the detector output will be
A.
zero
B.
dc
AnswerC.
dc + 1 kHz signal
D.
1 kHz signal
Answer: Option B
