Q85

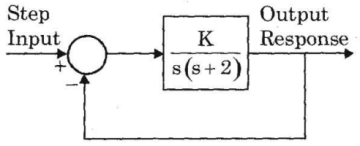

A closed loop system is shown in the above figure. What is the ratio of output frequencies ( for K = 32 ) ( for K = 16 )?

A closed loop system is shown in the above figure.
What is the ratio of output frequencies
Control Systems mcq question image
A.
1.40
B.
1.42
C.
1.44
Answer
D.
1.46

Answer: Option C

Solution

Answer: Option C
No explanation is given for this question Let's Discuss on Board
