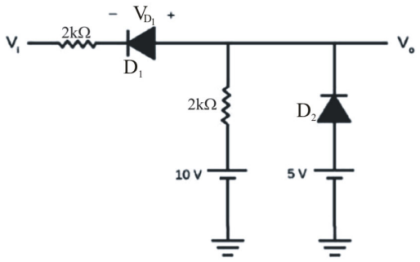

Consider the circuit shown below. Find the output voltage V0 for input voltage Vi = 5 V. Assume the voltage drop across a conducting diode is 0.7 V.
Consider the circuit shown below. Find the output voltage V0 for input voltage Vi = 5 V. Assume the voltage drop across a conducting diode is 0.7 V.
A.
8.65 V
B.
6.5 V
C.
7.85 V
AnswerD.
5 V
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
