Q345

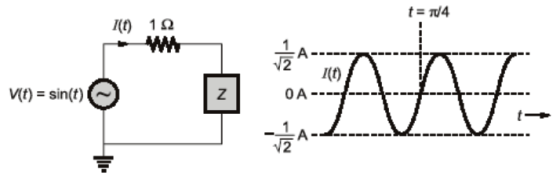

Consider the circuit shown in the figure with input V(t) in volts. The sinusoidal steady state current I(t) flowing through the circuit is shown graphically (where t is in seconds). The circuit element Z can be . . . . . . . .
Consider the circuit shown in the figure with input V(t) in volts. The sinusoidal steady state current I(t) flowing through the circuit is shown graphically (where t is in seconds). The circuit element Z can be . . . . . . . .
A.
a capacitor of 1 F
B.
an inductor of 1 H
AnswerC.
a capacitor of F
D.
an inductor of H
Answer: Option B
Solution
Answer: Option B
No explanation is given for this question Let's Discuss on Board
