Q323

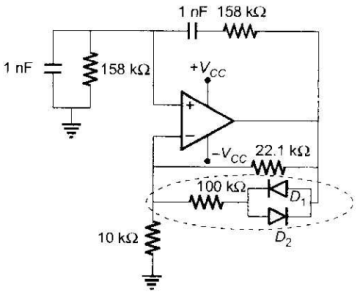

Consider the oscillator circuit shown in the figure. The function of the network (shown in dotted lines) consisting of the 100 kΩ resistor in series with the two diodes connected back-to-back is to:
Consider the oscillator circuit shown in the figure. The function of the network (shown in dotted lines) consisting of the 100 kΩ resistor in series with the two diodes connected back-to-back is to:
A.
Introduce amplitude stabilization by preventing the op-amp from saturating and thus producing sinusoidal oscillations of fixed amplitude
AnswerB.
Introduce amplitude stabilization by forcing the op-amp to swing between positive and negative saturation and thus producing square wave oscillations of fixed amplitude
C.
Introduce frequency stabilization by forcing the circuit to oscillate at a single frequency
D.
Enable the loop gain to take on a value that produces square wave oscillations
Answer: Option A
Solution
Answer: Option A
No explanation is given for this question Let's Discuss on Board
