Q26

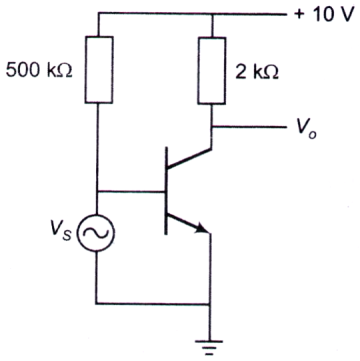

Figure shows a common emitter amplifier with β = 100. What is the maximum peak-to-peak input signal (Vs) for which distortion-free output may be obtained? [ Assume VBE = 0 and re = 20 ]
Figure shows a common emitter amplifier with β = 100. What is the maximum peak-to-peak input signal (Vs) for which distortion-free output may be obtained? [ Assume VBE = 0 and re = 20 ]
A.
40 mV
B.
60 mV
C.
80 mV
AnswerD.
100 mV
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
