Q353
For the circuit given in the figure, consider the following statements: 1. The output VO will consist of a positive and a negative spike if RC > T. 3. The output will have a higher rise time if RC is made progressively smaller than T. Of these statements:

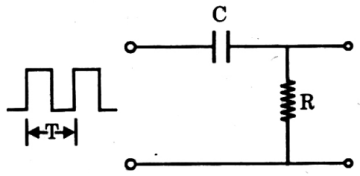

For the circuit given in the figure, consider the following statements:
1. The output VO will consist of a positive and a negative spike if RC << T.
2. The output VO will be similar to Vi if RC >> T.
3. The output will have a higher rise time if RC is made progressively smaller than T.
Of these statements:
1. The output VO will consist of a positive and a negative spike if RC << T.
2. The output VO will be similar to Vi if RC >> T.
3. The output will have a higher rise time if RC is made progressively smaller than T.
Of these statements:
A.
1, 2 and 3 are correct
B.
1 and 2 are correct
AnswerC.
2 and 3 are correct
D.
1 and 3 are correct
Answer: Option B
Solution
Answer: Option B
No explanation is given for this question Let's Discuss on Board
