Q178

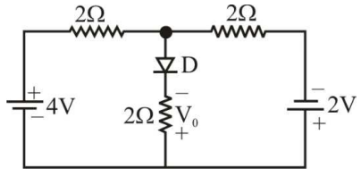

For the circuit shown in the figure below, the voltage V0 is (here D is an ideal diode)
For the circuit shown in the figure below, the voltage V0 is (here D is an ideal diode)
A.
-1 V
B.
1 V
C.
2 V
D.
None of the above
AnswerAnswer: Option D
Solution
Answer: Option D
No explanation is given for this question Let's Discuss on Board
