Q224

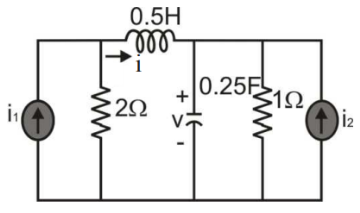

For the given circuit, which one of the following is the correct state equation?
For the given circuit, which one of the following is the correct state equation?
A.
\frac{d}{{dt}}\left[ \begin{array}{l}
v\\
i
\end{array} \right] = \left[ {\begin{array}{*{20}{c}}
{ - 4}&4\\
{ - 2}&{ - 4}
\end{array}} \right]\left[ \begin{array}{l}
v\\
i
\end{array} \right] + \left[ {\begin{array}{*{20}{c}}
0&4\\
4&0
\end{array}} \right]\left[ \begin{array}{l}
{i_1}\\
{i_2}
\end{array} \right]
AnswerB.
\frac{d}{{dt}}\left[ \begin{array}{l}
v\\
i
\end{array} \right] = \left[ {\begin{array}{*{20}{c}}
{ - 4}&{ - 4}\\
{ - 2}&{ - 4}
\end{array}} \right]\left[ \begin{array}{l}
v\\
i
\end{array} \right] + \left[ {\begin{array}{*{20}{c}}
4&0\\
0&4
\end{array}} \right]\left[ \begin{array}{l}
{i_1}\\
{i_2}
\end{array} \right]
C.
\frac{d}{{dt}}\left[ \begin{array}{l}
v\\
i
\end{array} \right] = \left[ {\begin{array}{*{20}{c}}
{ - 4}&{ - 4}\\
{ - 2}&4
\end{array}} \right]\left[ \begin{array}{l}
v\\
i
\end{array} \right] + \left[ {\begin{array}{*{20}{c}}
4&4\\
4&0
\end{array}} \right]\left[ \begin{array}{l}
{i_1}\\
{i_2}
\end{array} \right]
D.
\frac{d}{{dt}}\left[ \begin{array}{l}
v\\
i
\end{array} \right] = \left[ {\begin{array}{*{20}{c}}
4&{ - 4}\\
{ - 2}&{ - 4}
\end{array}} \right]\left[ \begin{array}{l}
v\\
i
\end{array} \right] + \left[ {\begin{array}{*{20}{c}}
0&4\\
4&4
\end{array}} \right]\left[ \begin{array}{l}
{i_1}\\
{i_2}
\end{array} \right]
Answer: Option A
Solution
Answer: Option A
No explanation is given for this question Let's Discuss on Board
