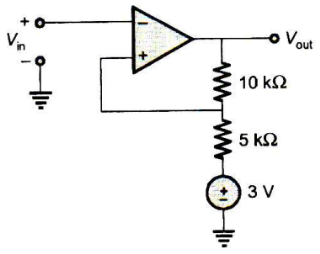

For the operational amplifier circuit shown, the output saturation voltages are ±15 V. The upper and lower threshold voltages for the circuit are, respectively,
For the operational amplifier circuit shown, the output saturation voltages are ±15 V. The upper and lower threshold voltages for the circuit are, respectively,
A.
+5 V and -5 V
B.
+7 V and -3 V
AnswerC.
+3 V and -7 V
D.
+3 V and -3 V
Answer: Option B
Solution
Answer: Option B
No explanation is given for this question Let's Discuss on Board
