Q303

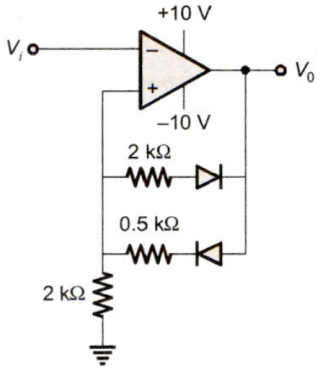

For the Schmitt trigger circuit shown in figure, assuming diodes and op-amp are ideal, the value of lower and upper threshold points of voltage transfer characteristics, respectively, are
For the Schmitt trigger circuit shown in figure, assuming diodes and op-amp are ideal, the value of lower and upper threshold points of voltage transfer characteristics, respectively, are
A.
-8 V, +5 V
B.
-5 V, +5 V
C.
-5 V, +8 V
AnswerD.
-8 V, +8 V
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
