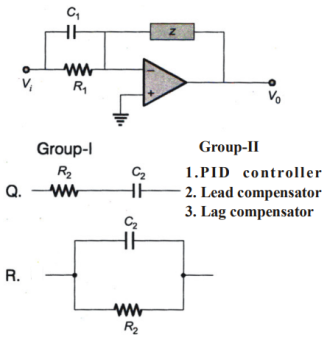

Group I gives two possible choices for the impedance Z in the diagram. The circuit elements in Z satisfy the condition R2C2 > R1C1. The transfer function V_0V_i represents a kind of controller. Match the impedances in Group I with the types of controllers in Group II.

Group I gives two possible choices for the impedance Z in the diagram. The circuit elements in Z satisfy the condition R2C2 > R1C1. The transfer function represents a kind of controller. Match the impedances in Group I with the types of controllers in Group II.
Control Systems mcq question image
A.
Q-1, R-2
B.
Q-1, R-3
Answer
C.
Q-2, R-3
D.
Q-3, R-2

Answer: Option B

Solution

Answer: Option B
