Q353

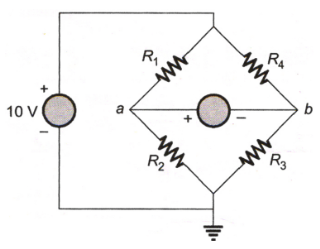

If R1 = R2 = R4 = R and R3 = 1.1 R in the bridge circuit shown in the figure, then the reading in the ideal voltmeter connected between a and b is
If R1 = R2 = R4 = R and R3 = 1.1 R in the bridge circuit shown in the figure, then the reading in the ideal voltmeter connected between a and b is
A.
0.238 V
B.
0.138 V
C.
-0.238 V
AnswerD.
1 V
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
