Q295

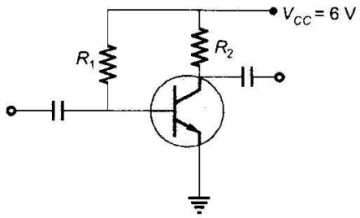

In the amplifier circuit shown in the figure, the values of R1 and R2 are such that the transistor is operating at VCE = 3 V and IC = 1.5 mA when its β is 150. For a transistor with β of 200, the operating point (VCE, IC) is
In the amplifier circuit shown in the figure, the values of R1 and R2 are such that the transistor is operating at VCE = 3 V and IC = 1.5 mA when its β is 150. For a transistor with β of 200, the operating point (VCE, IC) is
A.
(2 V, 2 mA)
AnswerB.
(3 V, 2 mA)
C.
(4 V, 2 mA)
D.
(4 V, 1 mA)
Answer: Option A
Solution
Answer: Option A
No explanation is given for this question Let's Discuss on Board
