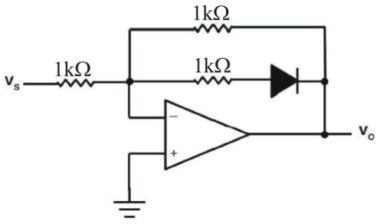

In the circuit shown below assume that diodes and op-amp are ideal. Suppose that V01 is the output voltage when input voltage is Vs = -1.0 V and V02 is the output voltage when input voltage is Vs = +1.0 V, then the value of V01 + V02 is
In the circuit shown below assume that diodes and op-amp are ideal. Suppose that V01 is the output voltage when input voltage is Vs = -1.0 V and V02 is the output voltage when input voltage is Vs = +1.0 V, then the value of V01 + V02 is
A.
2.0 V
B.
-0.5 V
C.
0.5 V
AnswerD.
0.0 V
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
