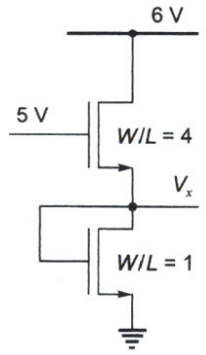

In the circuit shown below, for the MOS transistors, µn Cox = 100 µA/V2 and the threshold voltage VT = 1 V. The voltage Vx at the source of the upper transistor is
In the circuit shown below, for the MOS transistors, µn Cox = 100 µA/V2 and the
threshold voltage VT = 1 V. The voltage Vx at the source of the upper transistor is
A.
1 V
B.
2 V
C.
3 V
AnswerD.
3.67 V
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
