Q152

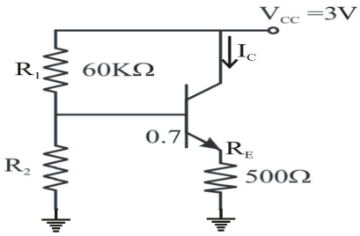

In the circuit shown below, the silicon npn transistor Q has a very high value of β. The required value of R2 (in kΩ) to produce Ic = 1 mA is
In the circuit shown below, the silicon npn transistor Q has a very high value of β. The required value of R2 (in kΩ) to produce Ic = 1 mA is
A.
20
B.
30
C.
40
AnswerD.
50
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
