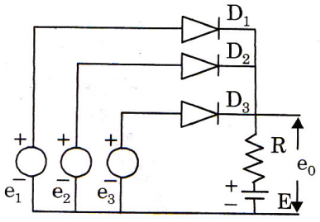

In the circuit shown in the figure, if e1 = 2 V, e2 = 5 V, e3 = 1 V and E = 2 V, then which one of the diodes will be conducting and what will be the e0?
In the circuit shown in the figure, if e1 = 2 V, e2 = 5 V, e3 = 1 V and E = 2 V, then which one of the diodes will be conducting and what will be the e0?
A.
D3;1 V
B.
D1;2 V
C.
D2;5 V
AnswerD.
D1;5 V
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
