Q139

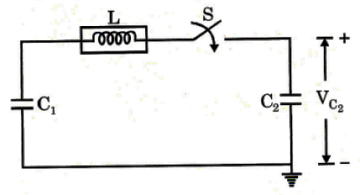

In the circuit shown in the given figure, C1 = C2 = 2F and the capacitor C1 has a voltage of 20 V when S is open If the switch S is closed at t = 0, the voltage VC2 will be a
In the circuit shown in the given figure, C1 = C2 = 2F and the capacitor C1 has a voltage of 20 V when S is open
If the switch S is closed at t = 0, the voltage VC2 will be a
If the switch S is closed at t = 0, the voltage VC2 will be a
A.
fixed voltage of 20 V
B.
fixed voltage of 10 V
C.
fixed voltage of -10 V
D.
sinusoidal voltage
AnswerAnswer: Option D
Solution
Answer: Option D
No explanation is given for this question Let's Discuss on Board
