Q355

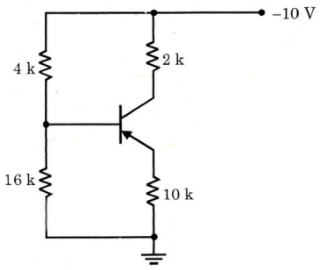

In the circuit shown in the given figure, the approximate voltage at the transistor
In the circuit shown in the given figure, the approximate voltage at the transistor
A.
base and emitter respectively are -8 V and -7.3 V
AnswerB.
base and collector respectively are -8 V and -5 V
C.
collector and emitter respectively are -8 V and -7.3 V
D.
base, emitter and collector respectively are -8 V, -7.3 and -5 V
Answer: Option A
Solution
Answer: Option A
No explanation is given for this question Let's Discuss on Board
