Q277

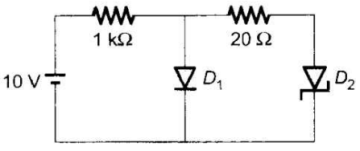

In the figure, assume that the forward voltage drops of the PN diode D1 and Schottky diode D2 are 0.7 V and 0.3 V, respectively. If ON denotes conducting state of the diode and OFF denotes non-conducting state of the diode, then in the circuit,
In the figure, assume that the forward voltage drops of the PN diode D1 and Schottky diode D2 are 0.7 V and 0.3 V, respectively. If ON denotes conducting state of the diode and OFF denotes non-conducting state of the diode, then in the circuit,
A.
Both D1 and D2 are ON
B.
D1 is ON and D2 is OFF
C.
Both D1 and D2 are OFF
D.
D1 is OFF and D2 is ON
AnswerAnswer: Option D
Solution
Answer: Option D
No explanation is given for this question Let's Discuss on Board
