Q301

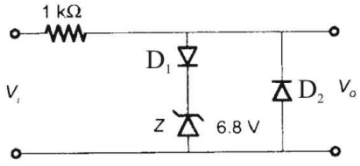

In the following limiter circuit, an input voltage Vi = 10 sin 100 πt is applied. Assume that the diode drop is 0.7 V when it is forward biased. The zener breakdown voltage is 6.8 V The maximum and minimum values of the output voltage respectively are
In the following limiter circuit, an input voltage Vi = 10 sin 100 πt is applied. Assume that the diode drop is 0.7 V when it is forward biased. The zener breakdown voltage is 6.8 V
The maximum and minimum values of the output voltage respectively are
The maximum and minimum values of the output voltage respectively are
A.
6.1 V, -0.7 V
B.
0.7 V, -7.5 V
C.
7.5 V, -0.7 V
AnswerD.
7.5 V, -7.5 V
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
