Q183

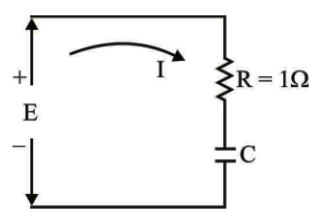

In the series RC circuit shown in the given figure, the rms value of the voltage E is 1 V. If the average power dissipated is equal to 500 mW, then the phase angle between the voltage and current will be
In the series RC circuit shown in the given figure, the rms value of the voltage E is 1 V. If the average power dissipated is equal to 500 mW, then the phase angle between the voltage and current will be
A.
90°
B.
60°
C.
45°
AnswerD.
30°
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
