Q196

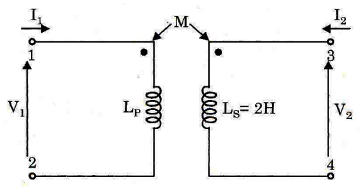

In the transformer shown in the figure below, the inductance measured across the terminal 1 and 2 was 4 H with open terminals 3 and 4. It was 3 H when the terminal 3 and 4 were short circuited. The coefficient of coupling would be
In the transformer shown in the figure below, the inductance measured across the terminal 1 and 2 was 4 H with open terminals 3 and 4. It was 3 H when the terminal 3 and 4 were short circuited. The coefficient of coupling would be
A.
1
B.
0.0707
C.
0.5
AnswerD.
indeterminate due to insufficient data
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
