Q300

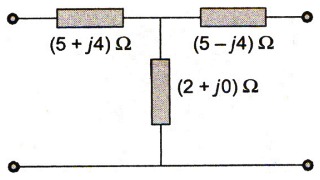

The ABCD parameters of the following 2-port network are
The ABCD parameters of the following 2-port network are
A.
\left[ {\begin{array}{*{20}{c}}
{3.5 + j2}&{20.5} \\
{20.5}&{3.5 - j2}
\end{array}} \right]
B.
\left[ {\begin{array}{*{20}{c}}
{3.5 + j2}&{30.5} \\
{0.5}&{3.5 - j2}
\end{array}} \right]
AnswerC.
\left[ {\begin{array}{*{20}{c}}
{10}&{2 + j0} \\
{2 + j0}&{10}
\end{array}} \right]
D.
\left[ {\begin{array}{*{20}{c}}
{7 + j4}&{0.5} \\
{30.5}&{7 - j4}
\end{array}} \right]
Answer: Option B
Solution
Answer: Option B
No explanation is given for this question Let's Discuss on Board
