Q63

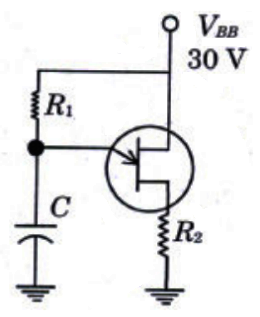

The characteristic of UJT shown in Figure exhibits η = 0.5, VV = 1 V, IV = 10 mA, IP = 20 µA and VP = 14 V. The value of R1 that will ensure proper turn on and turn off must be
The characteristic of UJT shown in Figure exhibits η = 0.5, VV = 1 V, IV = 10 mA, IP = 20 µA and VP = 14 V. The value of R1 that will ensure proper turn on and turn off must be
A.
800 KΩ > R1 > 2.9 KΩ
AnswerB.
2.9 KΩ > R1 > 800 KΩ
C.
2.9 KΩ > R1 > 2 KΩ
D.
800 KΩ > R1 > 200 KΩ
Answer: Option A
Solution
Answer: Option A
