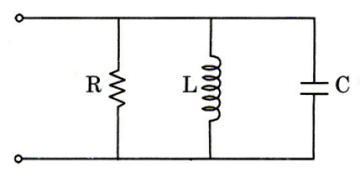

The circuit shown in the Figure, is to be scaled to an impedance level of 5 kΩ and a resonant frequency of 5 M rad/s. Which one of the following is a correct set element values for the scaled circuit?
The circuit shown in the Figure, is to be scaled to an impedance level of 5 kΩ and a resonant frequency of 5 M rad/s. Which one of the following is a correct set element values for the scaled circuit?
A.
2.5 Ω, 0.2 mH, 200 pF
B.
5 kΩ, 0.2 mH, 200 pF
AnswerC.
5 kΩ, 0.2 mH, 200 µF
D.
5 kΩ, 0.1 mH, 0.4 µF
Answer: Option B
Solution
Answer: Option B
No explanation is given for this question Let's Discuss on Board
