Q361

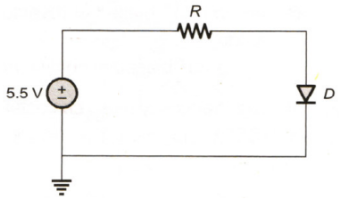

The cut-in voltage Vγ and thermal voltage VT for the diode D in figure shown below are 0.498 V and 2 mV, respectively. If the value of resistor R is 20 Ω, the current flowing through the diode is:
The cut-in voltage Vγ and thermal voltage VT for the diode D in figure shown below are 0.498 V and 2 mV, respectively.
If the value of resistor R is 20 Ω, the current flowing through the diode is:
If the value of resistor R is 20 Ω, the current flowing through the diode is:
A.
275 mA
B.
250 mA
AnswerC.
200 mA
D.
less than 200 mA
Answer: Option B
Solution
Answer: Option B
No explanation is given for this question Let's Discuss on Board
