The input voltage V1 and current I1 for linear passive network is given by V1 = AV2 - BI2 and I1 = CV2 - DI2 Now consider the following network: Which one of the following is the transfer matrix \[ [ array*20c A& B \\ C& D array ]\] of the network shown above?
The input voltage V1 and current I1 for linear passive network is given by V1 = AV2 - BI2 and I1 = CV2 - DI2

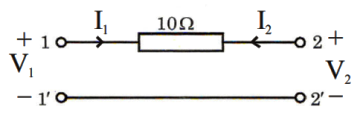

Now consider the following network:
Which one of the following is the transfer matrix \left[ {\begin{array}{*{20}{c}} {\text{A}}&{\text{B}} \\ {\text{C}}&{\text{D}} \end{array}} \right] of the network shown above?
Now consider the following network:
Which one of the following is the transfer matrix \left[ {\begin{array}{*{20}{c}} {\text{A}}&{\text{B}} \\ {\text{C}}&{\text{D}} \end{array}} \right] of the network shown above?
A.
\left[ {\begin{array}{*{20}{c}}
1&0 \\
0&{10}
\end{array}} \right]
B.
\left[ {\begin{array}{*{20}{c}}
1&{10} \\
0&1
\end{array}} \right]
AnswerC.
\left[ {\begin{array}{*{20}{c}}
0&1 \\
{10}&0
\end{array}} \right]
D.
\left[ {\begin{array}{*{20}{c}}
0&{10} \\
1&0
\end{array}} \right]
Answer: Option B
Solution
Answer: Option B
No explanation is given for this question Let's Discuss on Board
