Q42

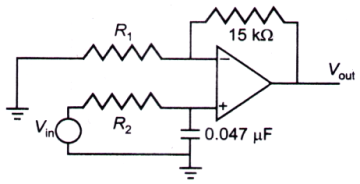

The low-pass active filter shown in the figure has a cut-off frequency of 2 kHz and a pass band gain of 1.5. The values of the resistors are
The low-pass active filter shown in the figure has a cut-off frequency of 2 kHz and a pass band gain of 1.5. The values of the resistors are
A.
R1 = 10 k; R2 = 1.3
B.
R1 = 30 k; R2 = 1.3
C.
R1 = 10 k; R2 = 1.7
D.
R1 = 30 k; R2 = 1.7
AnswerAnswer: Option D
Solution
Answer: Option D
No explanation is given for this question Let's Discuss on Board
