Q116

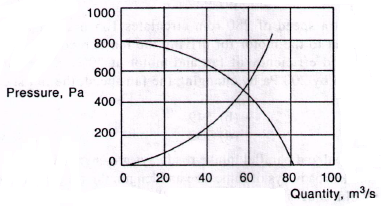

The main fan operating point of a ventilation system is shown in the figure below. If an NPV of 200 Pa assists the ventilation system, the resultant pressure (Pa) and quantity (m3) generated by the
The main fan operating point of a ventilation system is shown in the figure below. If an NPV of 200 Pa assists the ventilation system, the resultant pressure (Pa) and quantity (m3) generated by the
A.
500, 681
B.
600, 63
C.
640, 55
D.
400, 63
E.
640, 66
AnswerAnswer: Option E
Solution
Answer: Option E
No explanation is given for this question Let's Discuss on Board
