Q108

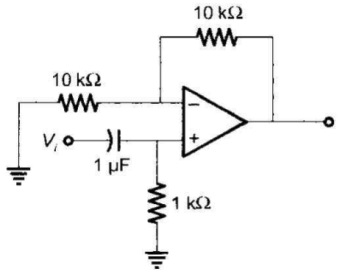

The op-amp circuit shown in the figure is a filter. The type of filter and its cut-off frequency are respectively
The op-amp circuit shown in the figure is a filter. The type of filter and its cut-off frequency are respectively
A.
High pass, 1000 rad/sec
AnswerB.
Low pass, 1000 rad/sec
C.
High pass, 10000 rad/sec
D.
Low pass, 10000 rad/sec
Answer: Option A
Solution
Answer: Option A
No explanation is given for this question Let's Discuss on Board
