Q128

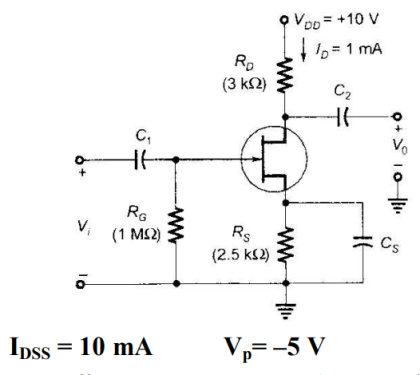

The voltage gain Av = V_0 V_ i of the JFET amplifier shown in the figure is (Assume C1, C2 and Cs to be very large)
The voltage gain Av = of the JFET amplifier shown in the figure is
(Assume C1, C2 and Cs to be very large)
(Assume C1, C2 and Cs to be very large)
A.
+18
B.
-18
C.
+6
D.
-6
AnswerAnswer: Option D
Solution
Answer: Option D
No explanation is given for this question Let's Discuss on Board
