Q93

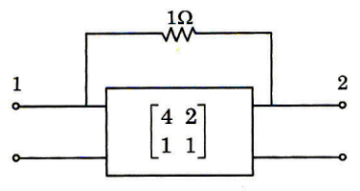

The Y parameters of a four-terminal block are \[ [ array*20c 4&2 \\ 1&1 array ].\] A single element of 1 ohm is connected across as shown in the given figure. The new Y parameters will be
The Y parameters of a four-terminal block are \left[ {\begin{array}{*{20}{c}}
4&2 \\
1&1
\end{array}} \right]. A single element of 1 ohm is connected across as shown in the given figure. The new Y parameters will be
A.
\left[ {\begin{array}{*{20}{c}}
5&1 \\
0&2
\end{array}} \right]
AnswerB.
\left[ {\begin{array}{*{20}{c}}
4&3 \\
2&2
\end{array}} \right]
C.
\left[ {\begin{array}{*{20}{c}}
3&2 \\
1&2
\end{array}} \right]
D.
\left[ {\begin{array}{*{20}{c}}
4&2 \\
1&1
\end{array}} \right]
Answer: Option A
Solution
Answer: Option A
No explanation is given for this question Let's Discuss on Board
