Q148

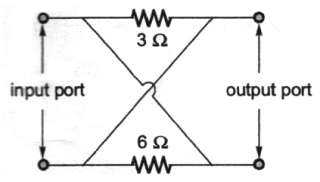

The Z-parameter matrix \[ [ array*20c Z_11& Z_12 \\ Z_21& Z_22 array ]\] for the two-port network shown is
The Z-parameter matrix \left[ {\begin{array}{*{20}{c}}
{{{\text{Z}}_{11}}}&{{{\text{Z}}_{12}}} \\
{{{\text{Z}}_{21}}}&{{{\text{Z}}_{22}}}
\end{array}} \right] for the two-port network shown is
A.
\left[ {\begin{array}{*{20}{c}}
2&{ - 2} \\
{ - 2}&2
\end{array}} \right]
AnswerB.
\left[ {\begin{array}{*{20}{c}}
2&2 \\
2&2
\end{array}} \right]
C.
\left[ {\begin{array}{*{20}{c}}
9&{ - 3} \\
6&9
\end{array}} \right]
D.
\left[ {\begin{array}{*{20}{c}}
9&3 \\
6&9
\end{array}} \right]
Answer: Option A
Solution
Answer: Option A
No explanation is given for this question Let's Discuss on Board
