Q264

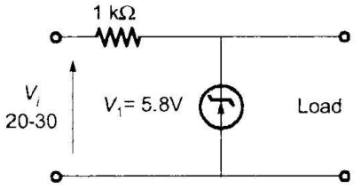

The Zener diode in the regulator circuit shown in the figure has a Zener voltage of 5.8 volts and a Zener knee current of 0.5 mA. The maximum load current drawn from this circuit ensuring proper functioning over the input voltage range between 20 and 30 volts, is
The Zener diode in the regulator circuit shown in the figure has a Zener voltage of 5.8 volts and a Zener knee current of 0.5 mA. The maximum load current drawn from this circuit ensuring proper functioning over the input voltage range between 20 and 30 volts, is
A.
23.7 mA
B.
14.2 mA
C.
13.7 mA
AnswerD.
24.2 mA
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
