Q134

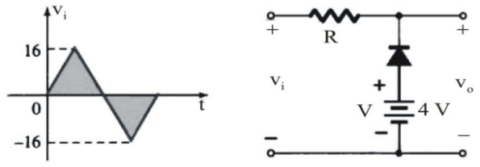

What are the output voltage levels for the given circuit? (Assume Si diode)
What are the output voltage levels for the given circuit? (Assume Si diode)
A.
-16 V, 3.3 V
B.
16 V, 3.3 V
AnswerC.
16 V, -3.3 V
D.
-16 V, -3.3 V
Answer: Option B
Solution
Answer: Option B
No explanation is given for this question Let's Discuss on Board
