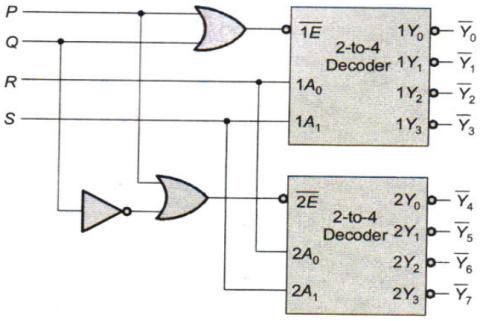

A 1-to-8 demultiplexer with data input Din, address inputs S0, S1, S2 (with S0 as the LSB) and Y _0 to Y _7 as the eight demultiplexed outputs, is to be designed using two 2-to-4 decoders (with enable input E and address inputs A0 and A1) as shown in the figure Din, S0, S1 and S2 are to be connected to P, Q, R and S, but not necessarily in this order. The respective input connections to P, Q, R and S terminals should be

A 1-to-8 demultiplexer with data input D_in, address inputs S₀, S₁, S₂ (with S₀ as the LSB) and $${\overline{\text{Y}}}_0$$ to $${\overline{\text{Y}}}_7$$ as the eight demultiplexed outputs, is to be designed using two 2-to-4 decoders (with enable input $$\overline{\text{E}}$$ and address inputs A₀ and A₁) as shown in the figure D_in, S₀, S₁ and S₂ are to be connected to P, Q, R and S, but not necessarily in this order. The respective input connections to P, Q, R and S terminals should be

Answer: Option D
