Q52

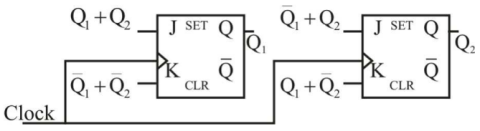

A 2-bit synchronous counter using two J-K flip flops is shown. The expressions for the inputs to the J-K flip flops are also shown in the figure. The output sequence of the counter starting from Q1Q2 = 00 is
A 2-bit synchronous counter using two J-K flip flops is shown. The expressions for the inputs to the J-K flip flops are also shown in the figure. The output sequence of the counter starting from Q1Q2 = 00 is
A.
00 → 11 → 10 → 01 → 00 . . . .
B.
00 → 01 → 10 → 11 → 00 . . . .
C.
00 → 01 → 11 → 10 → 00 . . . .
AnswerD.
00 → 10 → 11 → 01 → 00 . . . .
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
