Q111

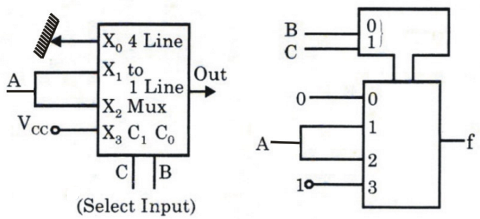

A 4-line-to-1-line multiplexer shown in figure-I (the same as per IEEE convention is shown in figure-II) is fed with three logic inputs A, B and C as shown. The output of the multiplexer will be
A 4-line-to-1-line multiplexer shown in figure-I (the same as per IEEE convention is shown in figure-II) is fed with three logic inputs A, B and C as shown. The output of the multiplexer will be
A.
∑m(0, 1, 2, 4)
B.
∑m(0, 3, 5, 7)
C.
∑m(3, 5, 6, 7)
AnswerD.
∑m(1, 2, 5, 6)
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
