Q254

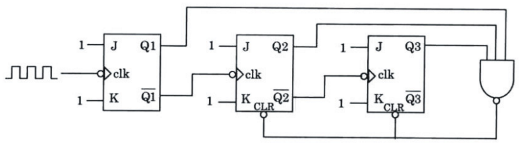

A counter is designed using J-K Flip-Flop as shown in figure Define its count sequence
A counter is designed using J-K Flip-Flop as shown in figure Define its count sequence
A.
000, 001, 010, 011, 100 & repeats
B.
100, 011, 010, 001, 000 & repeat
AnswerC.
010, 011, 100, 000, 001 & repeats
D.
101, 110, 111, 000, 001, 010, 011, 100 repeats
Answer: Option B
Solution
Answer: Option B
No explanation is given for this question Let's Discuss on Board
