Q74

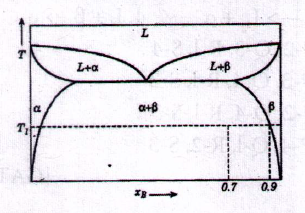

An alloy of overall composition, XB = 0.7 was equilibrated at temperature T1. Microstructural analysis showed two phases, (α and β, and that the phase fraction of β was 0.75. Given that the equilibrium composition of β at Ti is 0.9 as shown in the phase diagram below, the maximum solubility of B in α (in mole fraction) at this temperature is . . . . . . . .
An alloy of overall composition, XB = 0.7 was equilibrated at temperature T1. Microstructural analysis showed two phases, (α and β, and that the phase fraction of β was 0.75. Given that the equilibrium composition of β at Ti is 0.9 as shown in the phase diagram below, the maximum solubility of B in α (in mole fraction) at this temperature is . . . . . . . .
A.
0.05
B.
0.10
AnswerC.
0.50
D.
0.85
Answer: Option B
Solution
Answer: Option B
No explanation is given for this question Let's Discuss on Board
