Q191

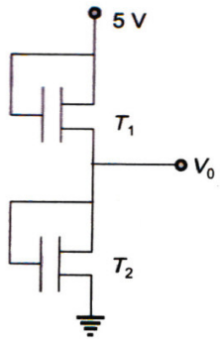

Both transistors T1 and T2 shown in the figure, have a threshold voltage of 1 Volts. The device parameters K1 and K2 of T1 and T2 are respectively, 36 µA/V2 and 9 µA/V2. The output voltage V0 is
Both transistors T1 and T2 shown in the figure, have a threshold voltage of 1 Volts. The device parameters K1 and K2 of T1 and T2 are respectively, 36 µA/V2 and 9 µA/V2. The output voltage V0 is
A.
1 V
B.
2 V
C.
3 V
AnswerD.
4 V
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
