Q131
From the following relative amplitude vs frequency plot, identify the type of noise which the sections A, B, C and D depict. List-I List-II a. Section A 1. Thermal noise b. Section B 2. Power line pick up c. Section C 3. Power supply (EPC) switching noise d. Section D 4. 1 f noise

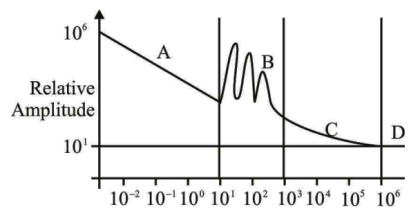

From the following relative amplitude vs frequency plot, identify the type of noise which the sections A, B, C and D depict.
| List-I | List-II |
| a. Section A | 1. Thermal noise |
| b. Section B | 2. Power line pick up |
| c. Section C | 3. Power supply (EPC) switching noise |
| d. Section D | 4. noise |
A.
a-1, b-2, c-3, d-4
B.
a-2, b-1, c-4, d-3
C.
a-4, b-2, c-3, d-1
AnswerD.
a-3, b-4, c-2, d-1
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
