Q208

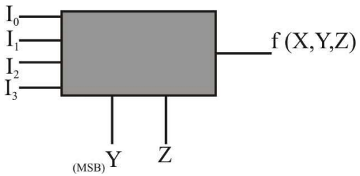

If a 4-to-1 MUX (shown below) realizes a three-variable function f(X, Y, Z) = XY + X Z . Then which of the following is correct?
If a 4-to-1 MUX (shown below) realizes a three-variable function f(X, Y, Z) = XY + X. Then which of the following is correct?
A.
I0 = X, I1 = 0, I2 = X, I3 = X
AnswerB.
I0 = 0, I1 = 1, I2 = Y, I3 = X
C.
I0 = X, I1 = 1, I2 = 0, I3 = X
D.
I0 = X, I1 = 0, I2 = X, I3 = Z
Answer: Option A
Solution
Answer: Option A
No explanation is given for this question Let's Discuss on Board
