Q106

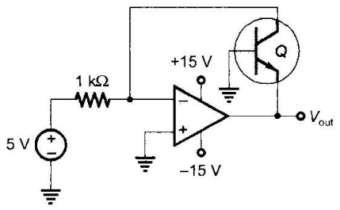

In the circuit shown below what is the output voltage (Vout) if a silicon transistor Q and an ideal op-amp are used?
In the circuit shown below what is the output voltage (Vout) if a silicon transistor Q and an ideal op-amp are used?
A.
-15 V
B.
-0.7 V
AnswerC.
+0.7 V
D.
+15 V
Answer: Option B
Solution
Answer: Option B
No explanation is given for this question Let's Discuss on Board
