Q215

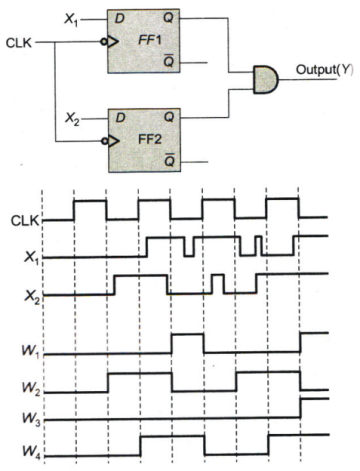

In the circuit shown, choose the correct timing diagram of the output (Y) from the given waveforms W1, W2, W3 and W4.
In the circuit shown, choose the correct timing diagram of the output (Y) from the given waveforms W1, W2, W3 and W4.
A.
W1
B.
W2
C.
W3
AnswerD.
W4
Answer: Option C
Solution
Answer: Option C
No explanation is given for this question Let's Discuss on Board
