Q177

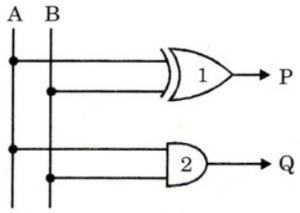

The half-adder circuit in the given Figure has inputs AB = 11 The logic level of P and Q outputs will be
The half-adder circuit in the given Figure has inputs AB = 11
The logic level of P and Q outputs will be
The logic level of P and Q outputs will be
A.
P = 0 and Q = 0
B.
P = 0 and Q = 1
AnswerC.
P = 1 and Q = 0
D.
P = 1 and Q = 1
Answer: Option B
Solution
Answer: Option B
No explanation is given for this question Let's Discuss on Board
