Q259

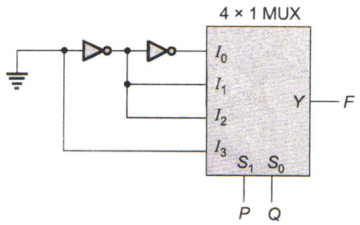

The logic function implemented by the circuit below is (ground implies a logic '0')
The logic function implemented by the circuit below is (ground implies a logic '0')
A.
F = AND(P, Q)
B.
F = OR(P, Q)
C.
F = XNOR(P, Q)
D.
F = XOR(P, Q)
AnswerAnswer: Option D
Solution
Answer: Option D
No explanation is given for this question Let's Discuss on Board
