Q98

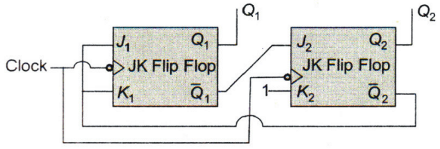

What are the counting states (Q1, Q2) for the counter shown in the figure below?
What are the counting states (Q1, Q2) for the counter shown in the figure below?
A.
11, 10, 00, 11, 10, . . . .
AnswerB.
01, 10, 11, 00, 01, . . . .
C.
00, 11, 01, 10, 00, . . . .
D.
01, 10, 00, 01, 10, . . . .
Answer: Option A
Solution
Answer: Option A
No explanation is given for this question Let's Discuss on Board
